Product Summary
Integrated Circuits (ICs) > Logic - Gates and Inverters NC7SV00P5X
Datasheets |
NC7SV00 |
---|---|
Product Photos |
SOT25 |
PCN Design/Specification |
Mold Compound 12/Dec/2007 |
PCN Packaging |
Binary Year Code Marking 15/Jan/2014 |
Standard Package ![]() |
3,000 |
Category | Integrated Circuits (ICs) |
Family | Logic - Gates and Inverters |
Series | 7SV |
Packaging ![]() |

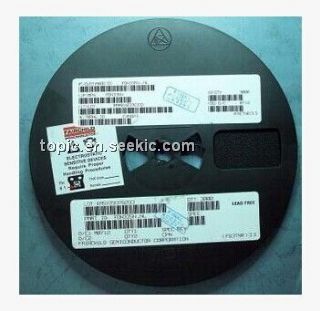

Tape & Reel (TR) ![]() |
Logic Type | NAND Gate |
Number of Circuits | 1 |
Number of Inputs | 2 |
Features | - |
Voltage - Supply | 0.9 V ~ 3.6 V |
Current - Quiescent (Max) | 0.9μA |
Current - Output High, Low | 24mA, 24mA |
Logic Level - Low | 0.7 V ~ 0.8 V |
Logic Level - High | 1.6 V ~ 2 V |
Max Propagation Delay @ V, Max CL | 2.3ns @ 3V, 30pF |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Supplier Device Package | SC-70-5 |
Package / Case | 6-TSSOP (5 Lead), SC-88A, SOT-353 |
Dynamic Catalog | 7SV |
Other Names |
NC7SV00P5X-ND NC7SV00P5XTR |
Parametrics
Integrated Circuits (ICs) > Logic - Gates and Inverters NC7SV00P5X
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() NC7SV00P5X |
![]() Fairchild Semiconductor |
![]() Gates (AND / NAND / OR / NOR) 2-Input NAND Gate |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() NC7SV00P5X_Q |
![]() Fairchild Semiconductor |
![]() Gates (AND / NAND / OR / NOR) 2-Input NAND Gate |
![]() Data Sheet |
![]()
|
|
